CERIA.DE PM0020 – Timber Swing Frame
Technical Data en
Timber Construction
Comes with steel bar and D-Shackles for hanging seats.
Two frame heights available 2.0m and 2.4m
Seats Not Included
Dimensions For 2.4m Swing Frame
Product Dimensions; 2400mm x 2610mm x 1720mm
Min Space Required; 2.6m x 6.7m
Min Safety Surface; 11.73m2
Free Fall Height; 1.4m (Approximately).
Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.7m (from 6.7m) to allow an extra 500mm of surfacing at either end.
Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.

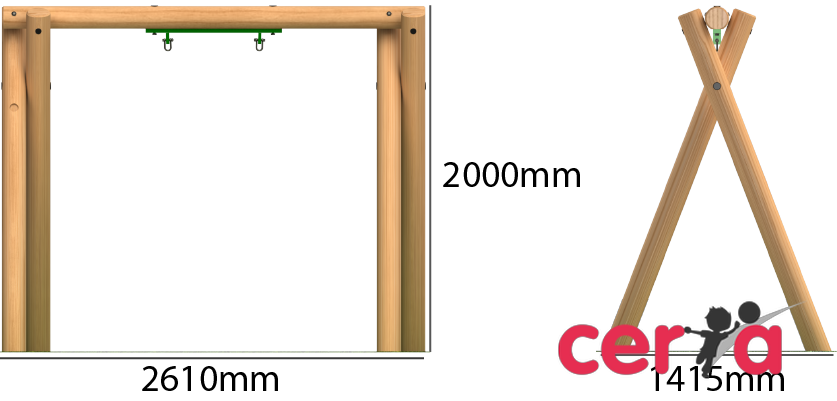

Dimensions For 2.0m Swing Frame
Product Dimensions; 2000mm x 2610mm x 1415mm
Min Space Required; 2.6m x 6m
Min Safety Surface Area; 10.59m2
Free Fall Height; 1.2m (Approximately)
Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.
Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.
