Technical Data en

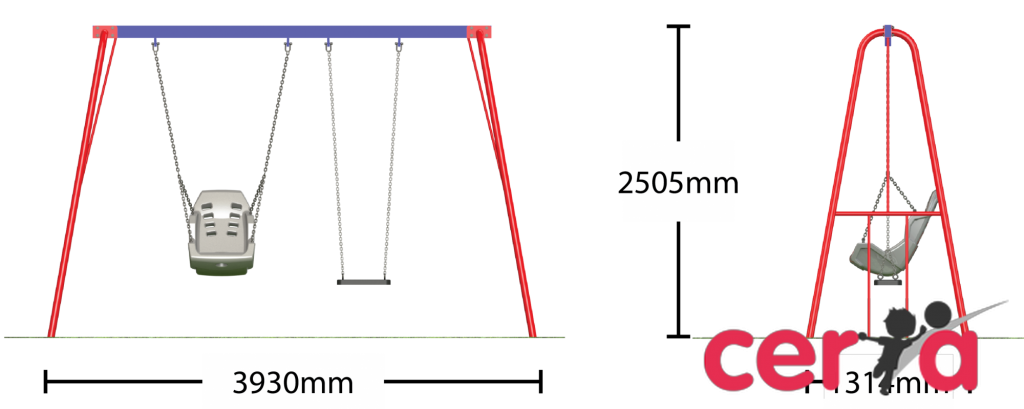

Product Dimensions; 3930mm x 2505mm x 1314mm

Min Space Required; 4.3m x 7.0m

Min Safety Surface Area; 19.30m²

Free Fall Height; 1.4m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 8.0m (from 7.0m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.

Main Features

Timber Construction

1 x Inclusive Seat With Harness

1 x Rubber Flat Seats

Age Range 5+
